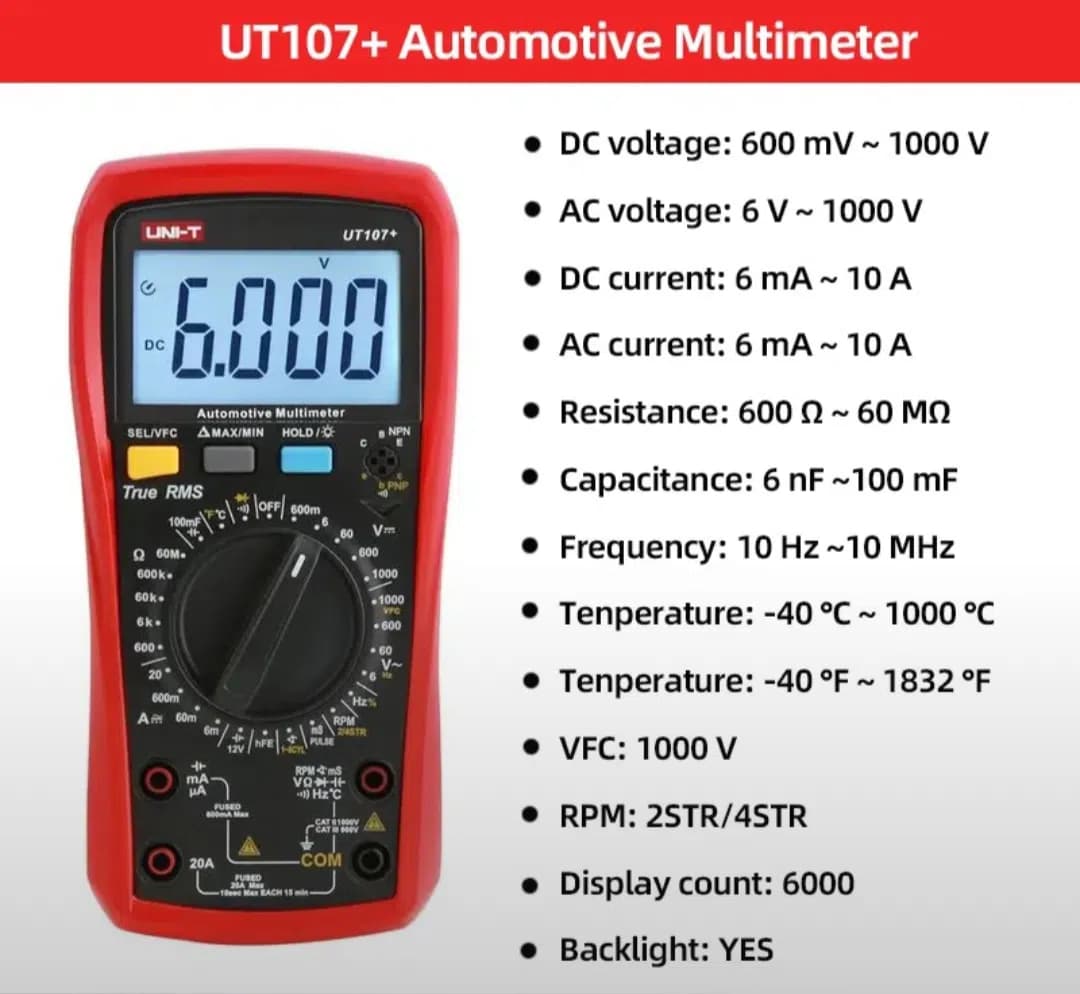

UNI-T UT107+ Digital Multimeter

Multimeter Model: UNI-T UT107+ It is a professional True RMS digital multimeter designed for diagnosing electrical systems and electronic components in automobiles and electric vehicles. Suitable for testing batteries, generators, ignition systems, sensors, electrical circuits, and other automotive components. The multimeter features specialized automotive diagnostic functions including engine speed (RPM), dwell angle, and pulse width measurements. It also measures temperature, capacitance, frequency, and duty cycle. A large backlit display ensures easy reading. Data hold, MAX/MIN, and REL functions allow for recording and tracking measurement results. The rugged design makes the device suitable for use in automotive repair shops and on-site diagnostics. 📌 Features ● True RMS: Yes ● Display resolution: 6000 counts. ● DC voltage: up to 1000 V. ● AC voltage: up to 1000 V. ● DC current: up to 10 A. ● Maximum current: 20 A, up to 10 seconds. ● Resistance: up to 60 MΩ. ● Capacitance: up to 100 mF. ● Frequency: up to 10 MHz. ● Temperature: -40…+1000 °C ● RPM: Yes. ● Dwell angle: 1–8 Cylinders. ● Pulse width: up to 999.9 ms. ● Duty cycle: Yes. ● Battery test: 12 V ● VFC: Yes. ● Diode test: Yes. ● Continuity test: Yes. ● Transistor test: Yes. ● Data hold: Yes. ● MAX/MIN: Yes. ● Relative REL measurements: Yes. ● Display backlight: Yes. ● Safety rating: CAT II 1000 V / CAT III 600 V. ● Power: 2 x AAA 1.5 V. ● Dimensions: 183x88x56 mm. ● Weight: 348 g. bakutool.az
