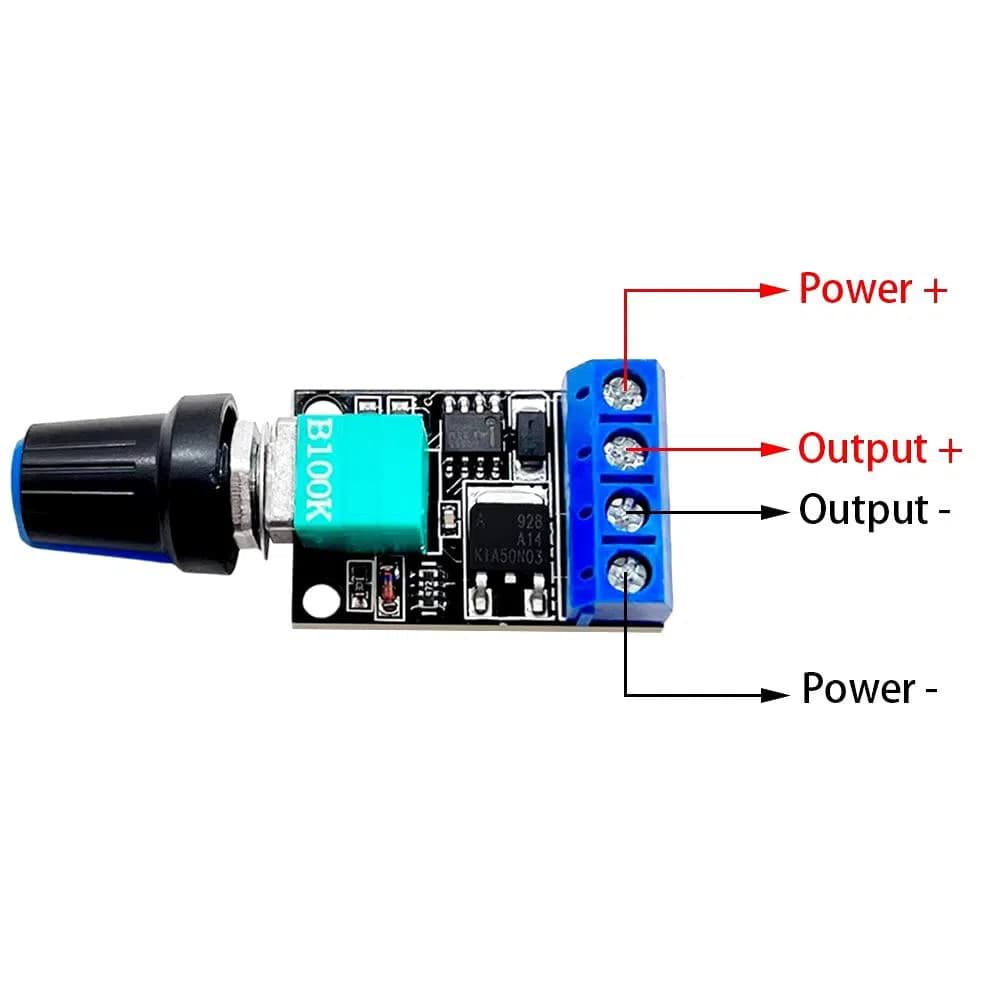

PWM DC Motor Speed Controller

Voltage regulator | Регулятор напряжения | Gərginlik tənzimləyicisi PWM DC Motor Speed Controller | ШИМ-контроллер скорости двигателя постоянного тока | PWM DC mühərrik sürətinə nəzarət cihazı DC motor Motor controllers Description: - Maximum voltage: 16 V - Minimum voltage: 5 V - Continuous current: 10A - Short-term maximum current: 20A (less than 10 seconds) - Speed control mode: PWM stepless speed regulation, can also be used for light adjustment - Control mode: speed control potentiometer (clicked clockwise, continued rotation clockwise from 1% to 99% speed) - Duty cycle: 0%-99% (0% position is the switch state when the potentiometer is at the far left). - When power is on: 0.002A (no need to turn off the regulator for a long time, no current). - Efficiency: maximum efficiency as high as 98%. - Dimensions: length 3 cm (without potentiometer), width 2 cm, height 1.4 cm ------------------------------------------------------ Delivery to 20 Yanvar is possible for 2 manat. Delivery to Sumgayit, Khirdalan, and Baku is available. Shipping to regions via post is possible. Whatsapp is active. You can view our other ads in the "All ads of the user" section.
