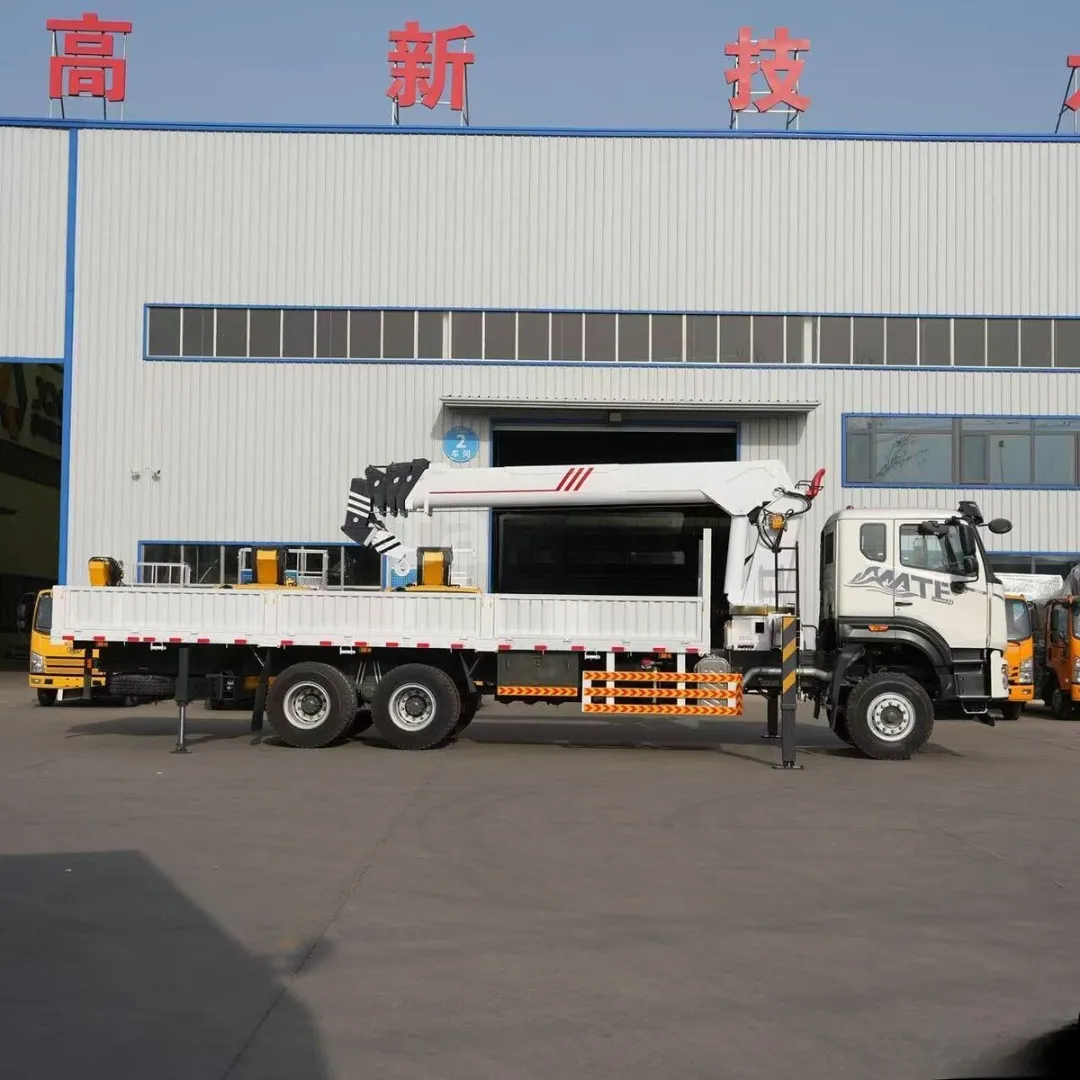

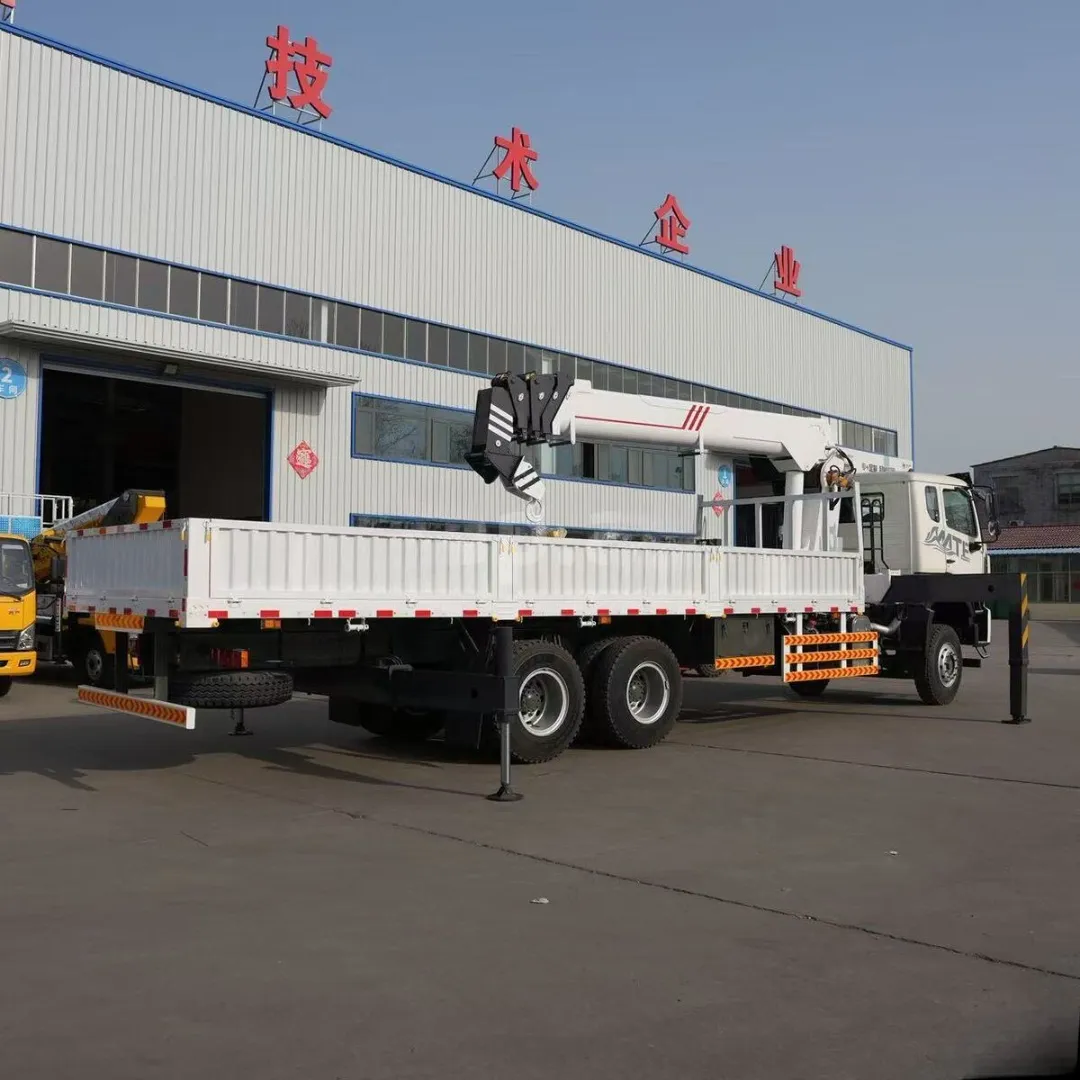

HOWO 14T Flatbed Crane Manipulator

Anra Group is the exclusive distributor of the brand in Azerbaijan and China. General Dimensions • Overall dimensions (L × W × H): 12000 × 2500 × 3950 mm • Body dimensions: 8500 × 2400 × 550 mm • Maximum gross weight: 25000 kg • Crane unit weight: 8575 kg • Nominal truck payload capacity: 5725 kg • Outrigger span: 2.5 m × 5.8 m CHASSIS • Chassis model: HOWO • Gearbox model: Fast 8-speed transmission • Engine brand: Weichai • Engine power: 320 hp (199 kW) • Axle load: 7000 kg / 18000 kg • Maximum speed: 90 km/h • Cooling system: Air conditioner • Tire type: 1100R20-18PR • Dual pump combined system: Yes • Hydraulic oil tank: Aluminum • Chassis frame thickness: 284 mm (3 layers) LIFTING AND ROTATION SYSTEM • Maximum lifting capacity: 14T • Maximum lifting height: 21.8 m • Maximum horizontal boom length: 5 m • Maximum lifting angle: 0–75° • Boom structure: U-shaped, 5 sections, 5.6–18.8 m • Maximum lifting moment: 30000 kg*m • Boom cable: Automatic, 2 sections • Boom extension system: With return cable • Boom extension method: With two cylinders • Rotation angle: 360° • Rotation speed: 2.5 rpm • Warranty: 2 years VAT is included in the price. Anra Group operates in China under the relevant license based on the legislation of the People's Republic of China. • We have been selling construction machinery to Azerbaijan, Turkey, Kazakhstan, Russia, the United Arab Emirates, and many European countries for over 10 years. HOWO 14T Flatbed Crane Manipulator • Our company only cooperates with ISO 9001 and CE certified factories. • If you want to buy machinery directly from the manufacturer with a full warranty and at the best price, you can contact us.
