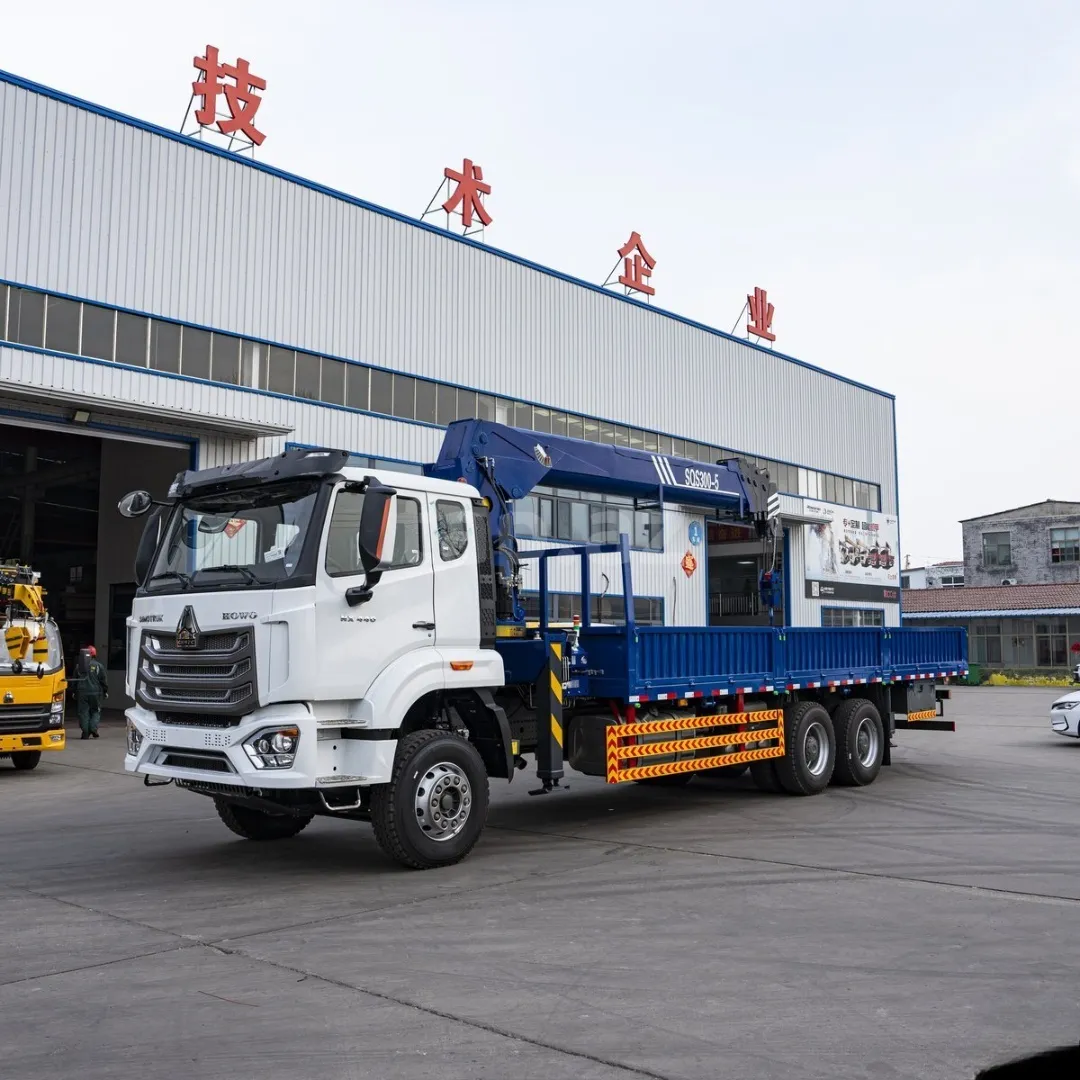

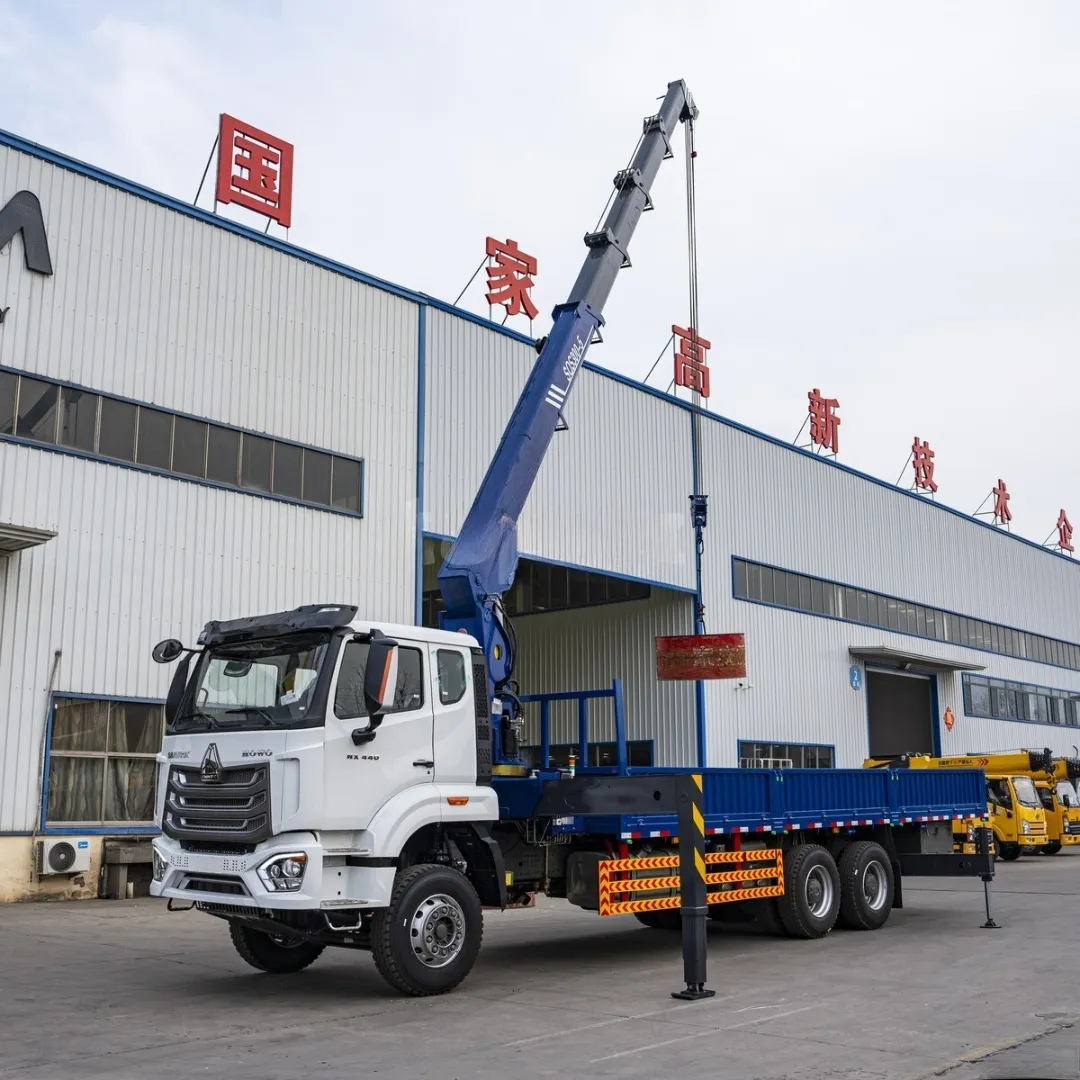

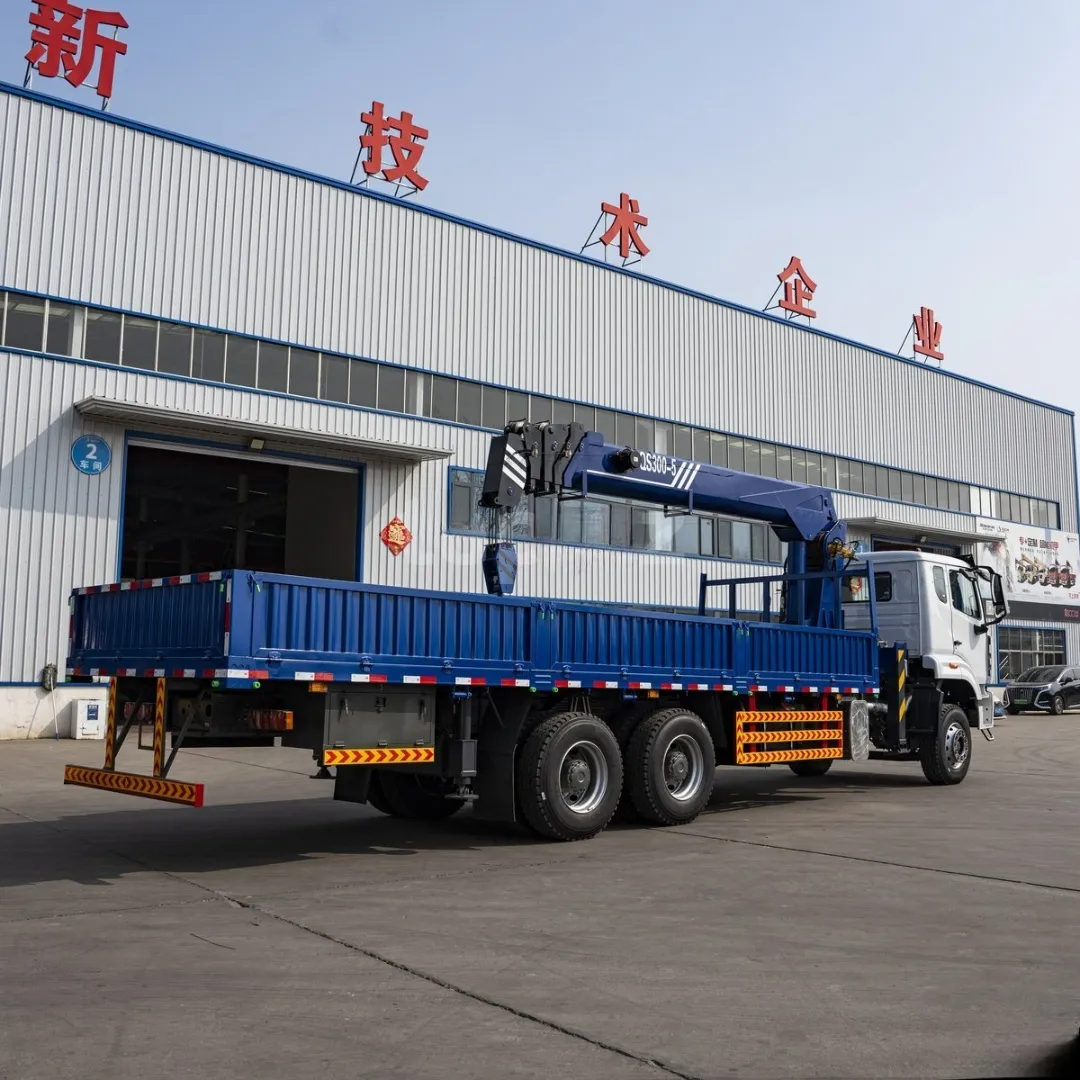

HOWO 12T Crane Manipulator

HOWO 12T CRANE MANIPULATOR Anra Group is the exclusive distributor of the brand in Azerbaijan and China. Main Vehicle Parameters Axle load: Front axle 9T, Rear axle 16T Chassis model: HOWO NX440 Engine model: WD616.47 Vehicle dimensions: 12000 × 2500 × 3950 mm Engine power: 440 HP Chassis type: 6×4 Maximum lifting height: 21287.5 mm Wheelbase: 5800 + 1350 mm Maximum lifting moment: 38T*M Gross weight: 25000 kg Maximum lifting capacity: 12T Curb weight: 12500 kg Maximum lifting radius: 18125 mm Number of springs: 12 Main boom length: 5730 mm Gearbox model: 10-speed Full boom length: 18500 mm Frame: 300 triple Boom extension method: Two-section direct push + synchronous telescopic Tyre model: 12.00R20 Number of boom sections: 5 Boom type: U-shaped, two-cylinder boom Rotation speed: 0~1.6 r/min Boom material: High-quality manganese steel Maximum lifting angle: 75° System nominal flow: 120 L/min Rotation angle: 360° Warranty: 2 YEARS VAT is not included in the price. Anra Group operates in China under the relevant license based on the legislation of the People's Republic of China. •We have been selling construction machinery to Azerbaijan, Turkey, Kazakhstan, Russia, the United Arab Emirates, and many European countries for over 10 years. •Our company only cooperates with ISO 9001 and CE certified factories. •If you want to buy machinery directly from the manufacturer with a full warranty and at the best price, you can contact us.
