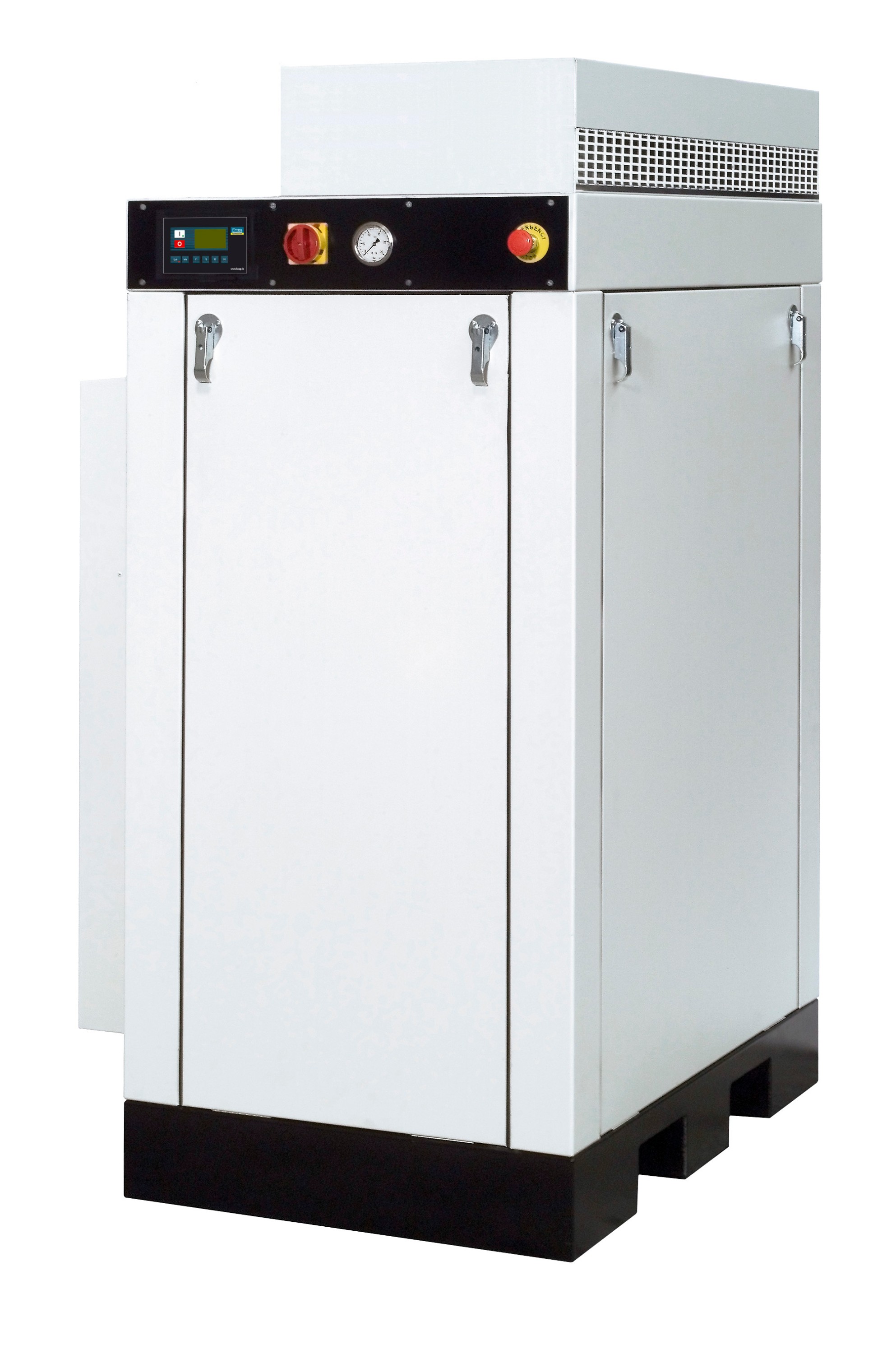

HAUG.Orion

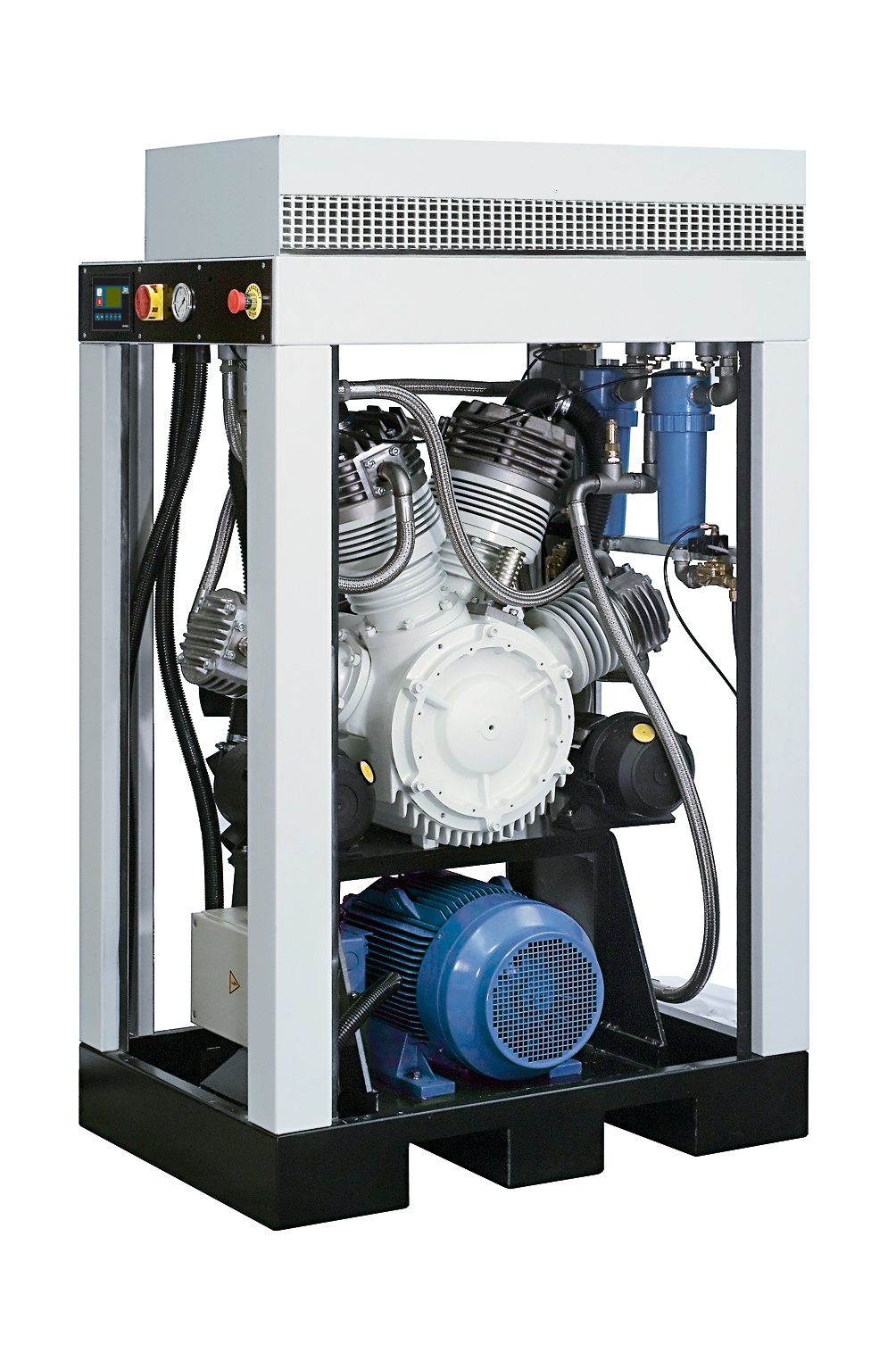

Universal belt-driven solution HAUG Orion compressors operate completely dry. There is no cylinder lubrication or oil bath for the crankshaft. Thus, oil contamination of the compressed air is excluded. • Air intake filter • HITACHI scroll compressor block • Cooling fan integrated into the compressor block • Temperature sensor for ambient temperature • Room air fan • Drive motor • V-belt drive and V-belt pulley • Temperature switch for outlet temperature • Non-return valve • Aftercooler for compressed air • Compressed air receiver at the outlet • Automatic condensate drain (starting from 3.7 kW) • Pressure sensor for monitoring and control • Electrical control system with Start/Stop/Reset and LED display for status and error indication (starting from 3.7 kW) • Potential-free general alarm with S1 control option (optional for 3.7 kW and 5.5 kW) • Optional base load changeover control for multi-compressor operation (starting from 3.7 kW) is available Pressure: max 60 bar(g) Volume flow: max 160 Nm³/h Rated power: 11 – 30 kW Medium: Air Features Oil-free Completely oil-free and dry-running piston compressor Belt drive HAUG Orion operates via belt drive through electric motors. The compressor flow rate can be adjusted according to requirements by changing the belt pulleys. High-efficiency air cooling Proven and easy-to-maintain design with high cooling performance. Water cooling (optional) The most efficient cooling solution for high transmission power – reliable and easy to maintain.
