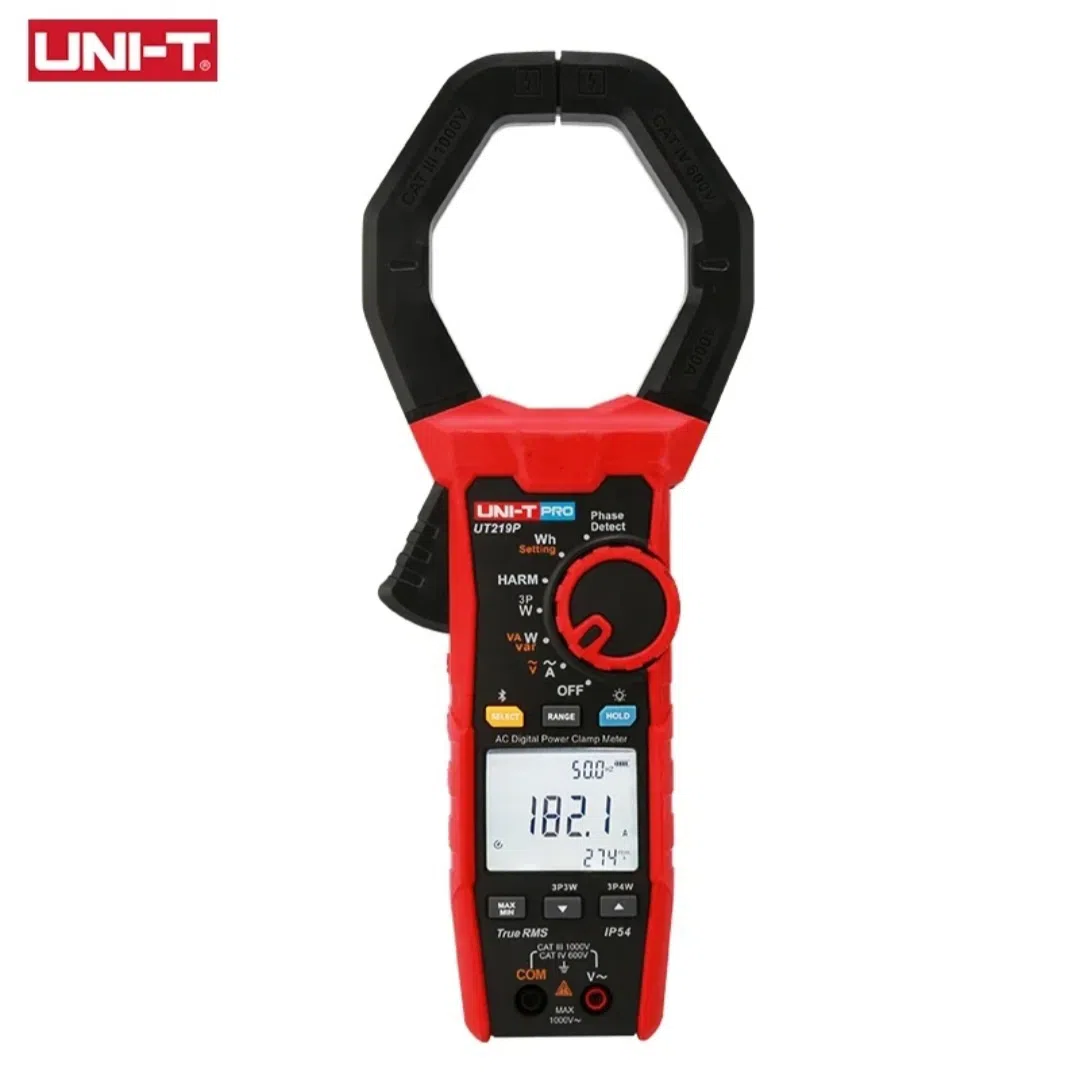

Clamp Meter UNI-T UT 219P

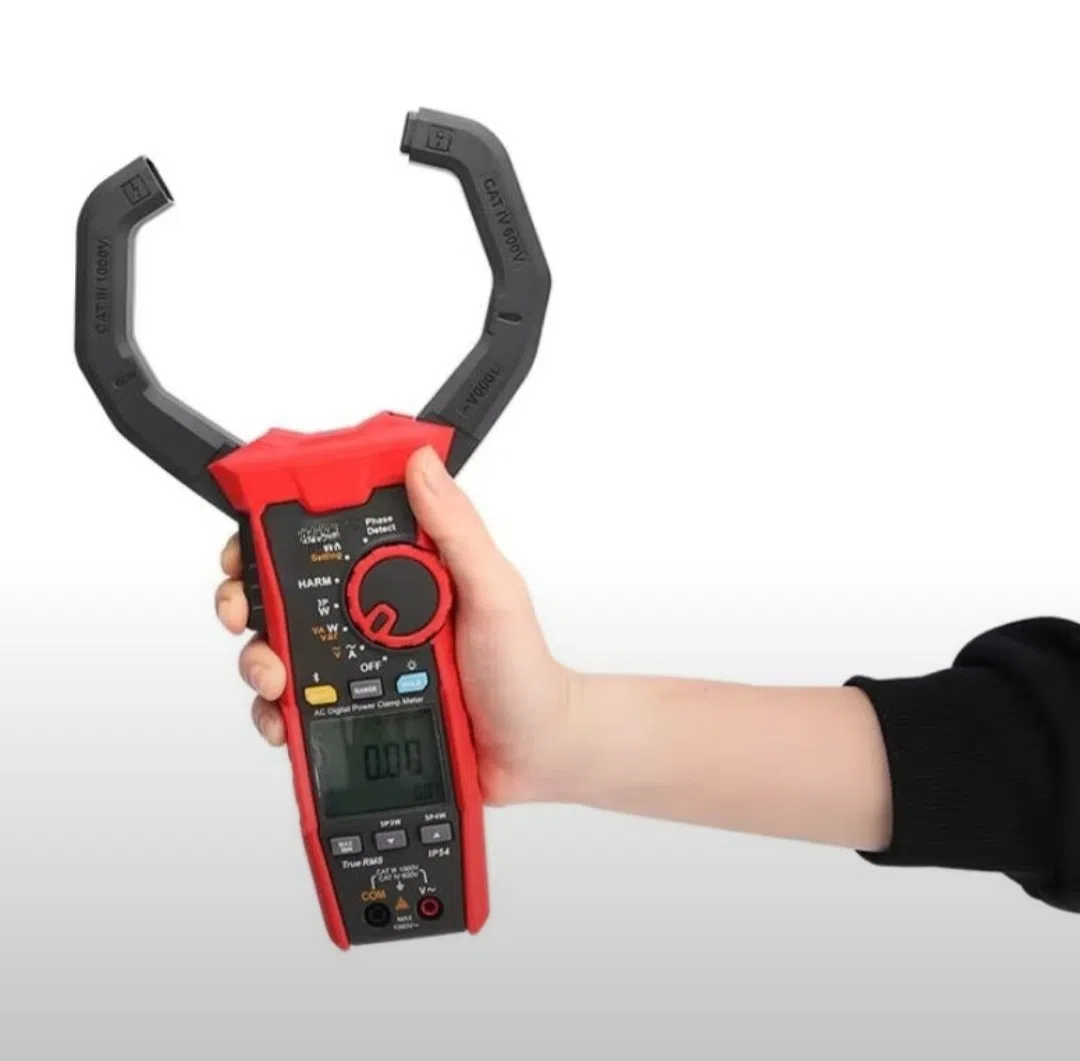

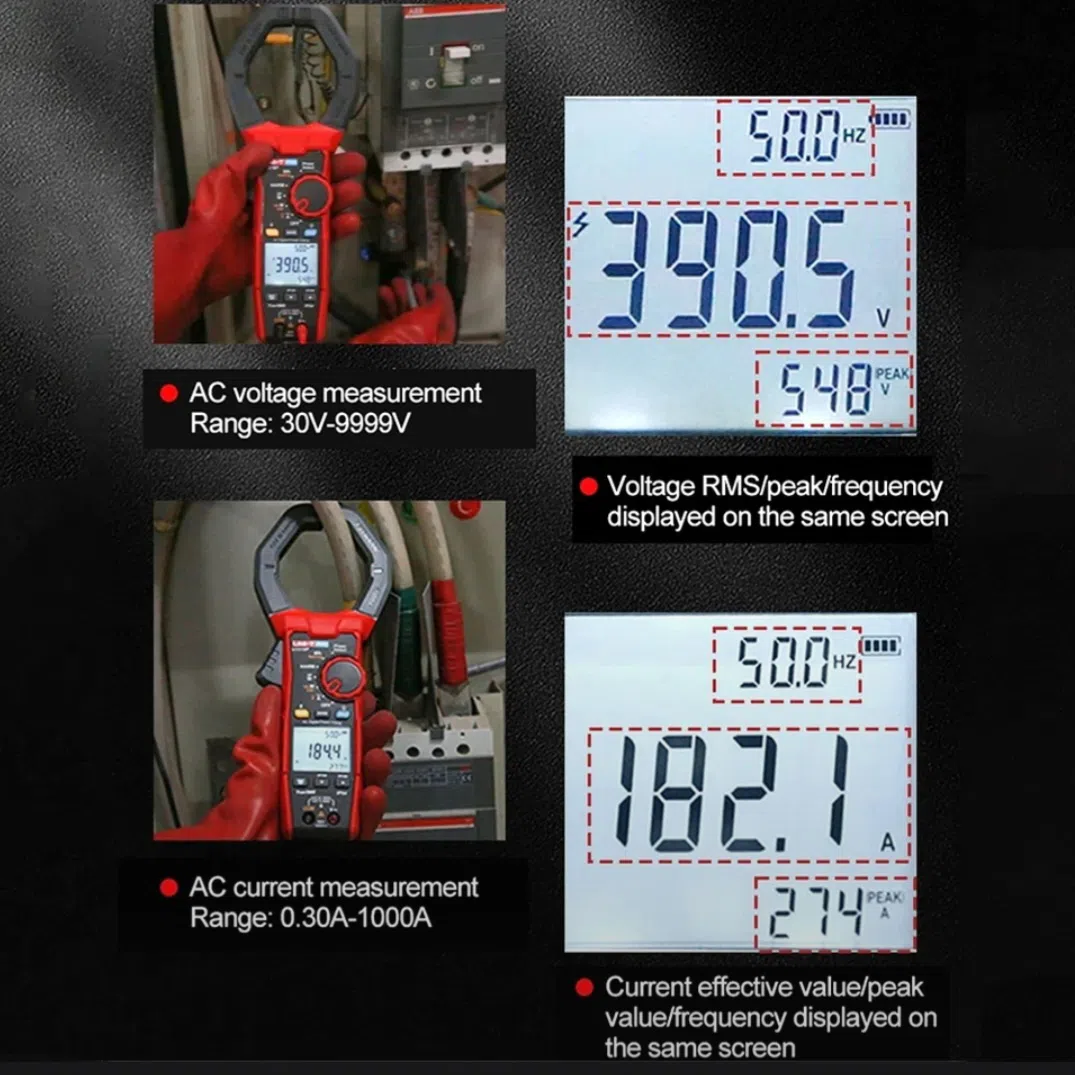

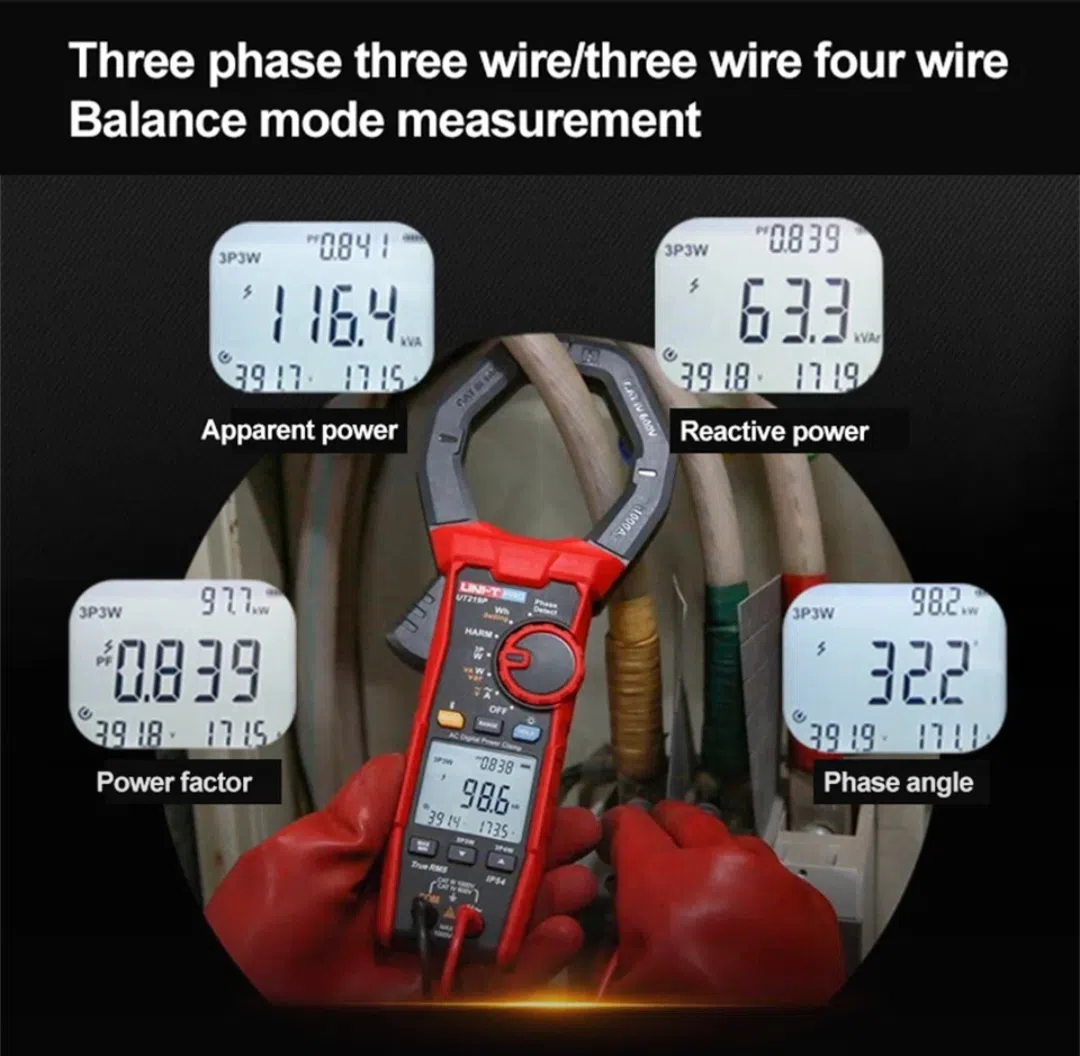

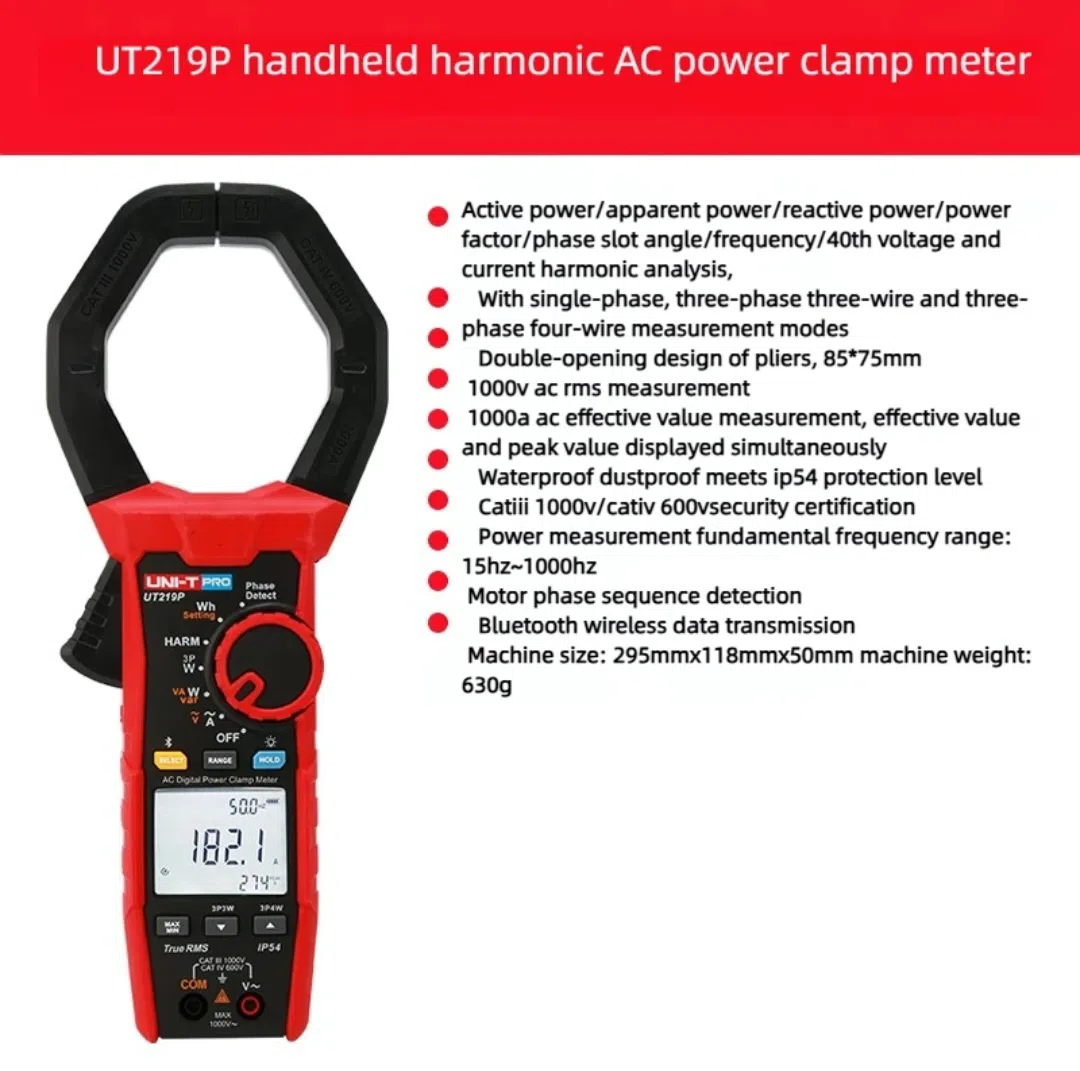

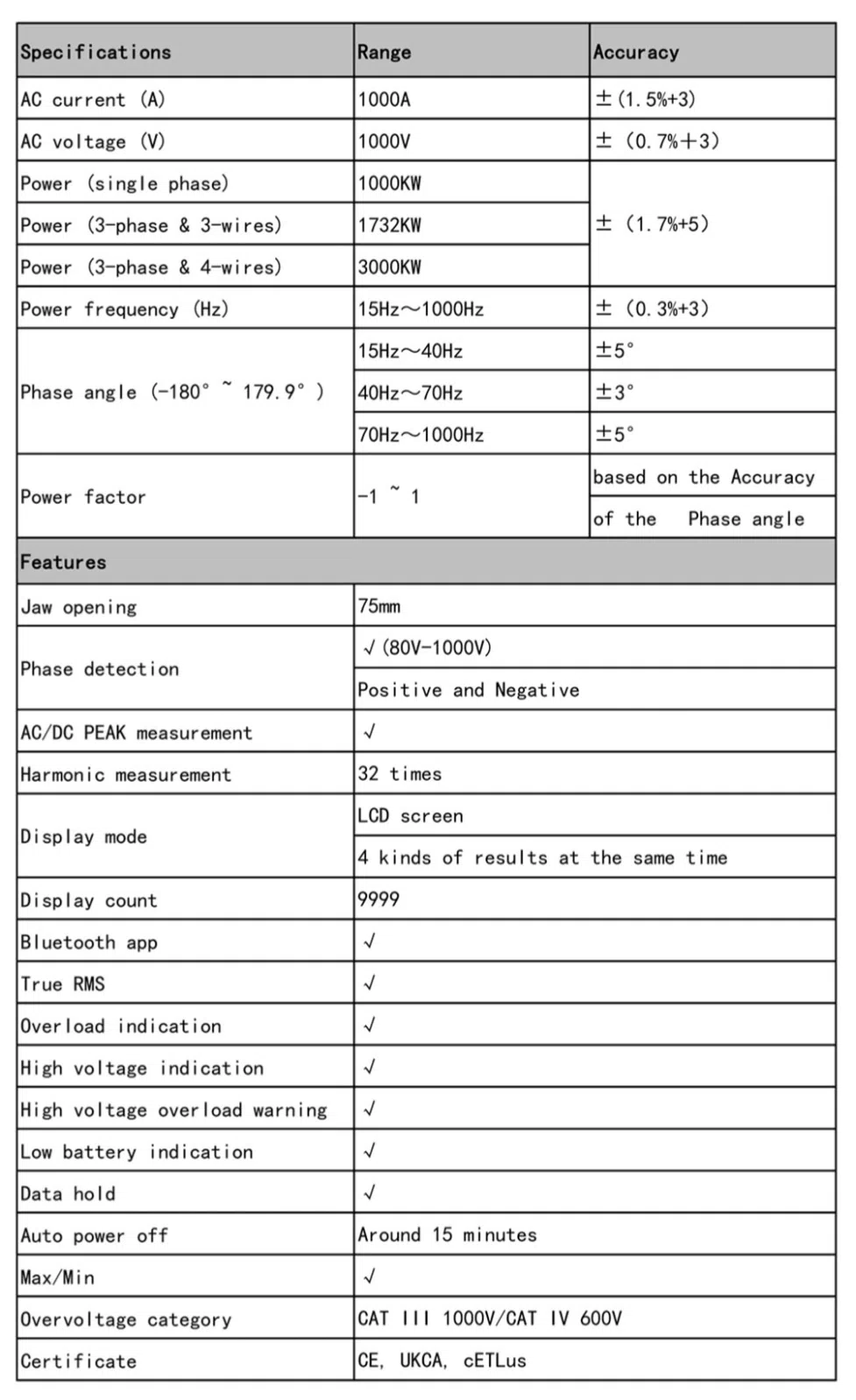

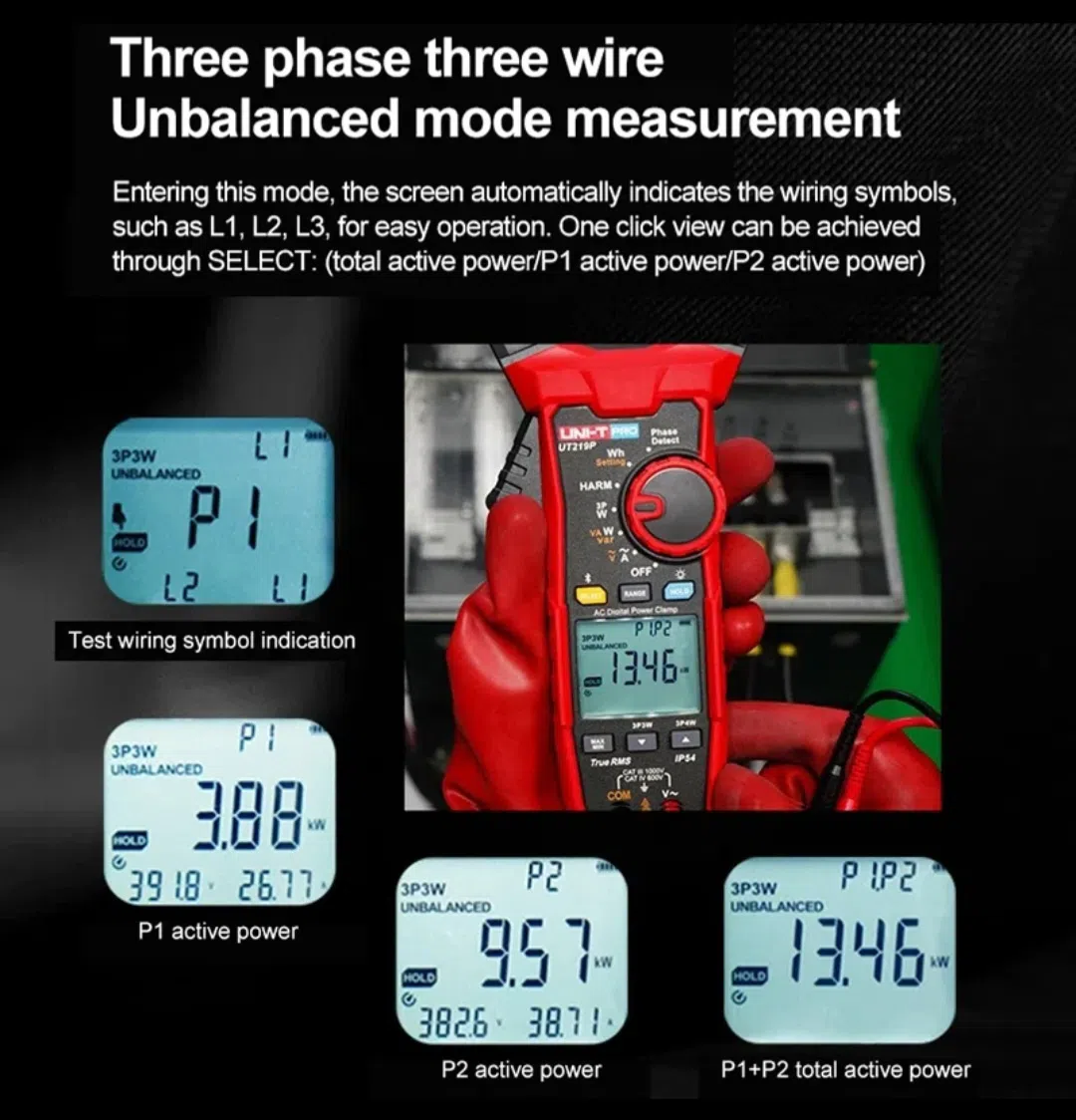

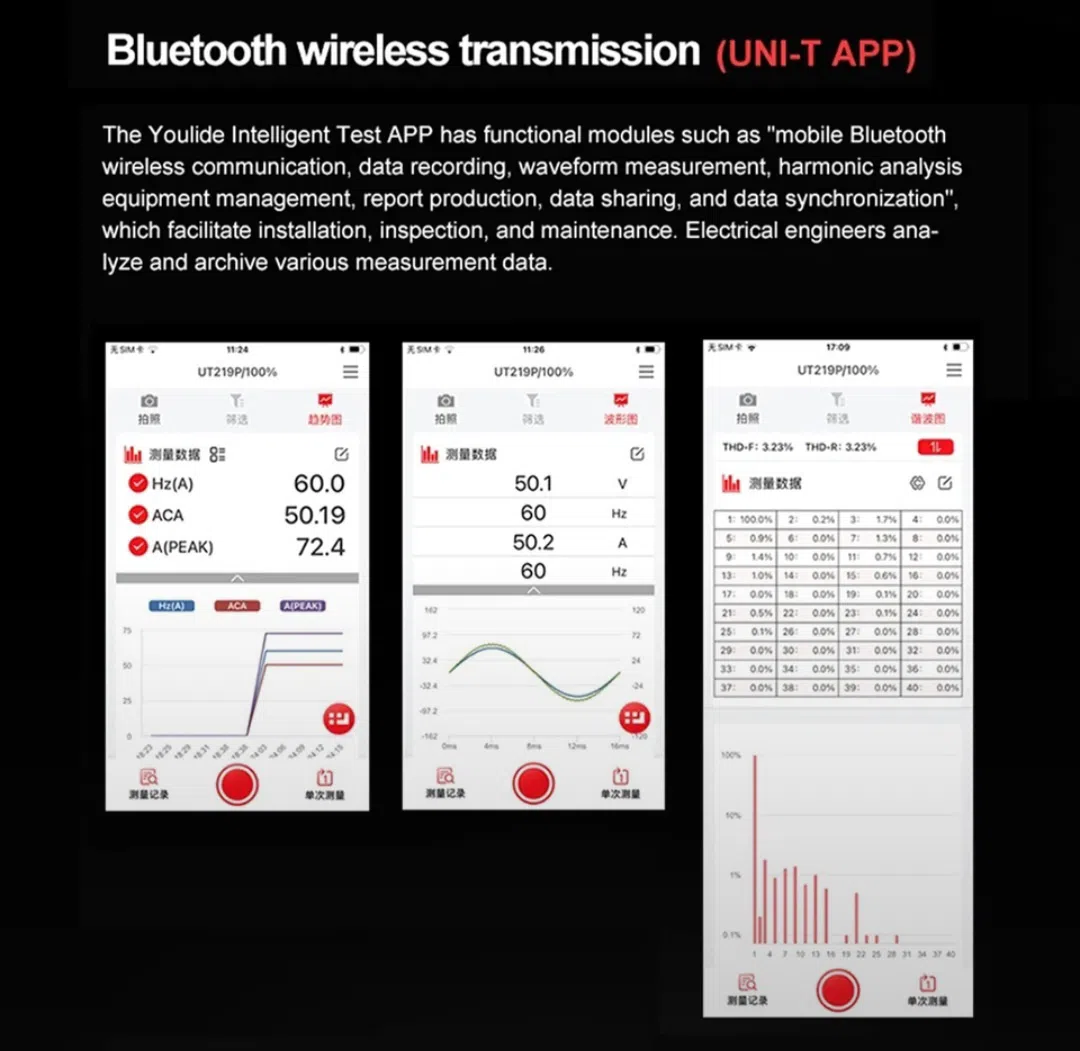

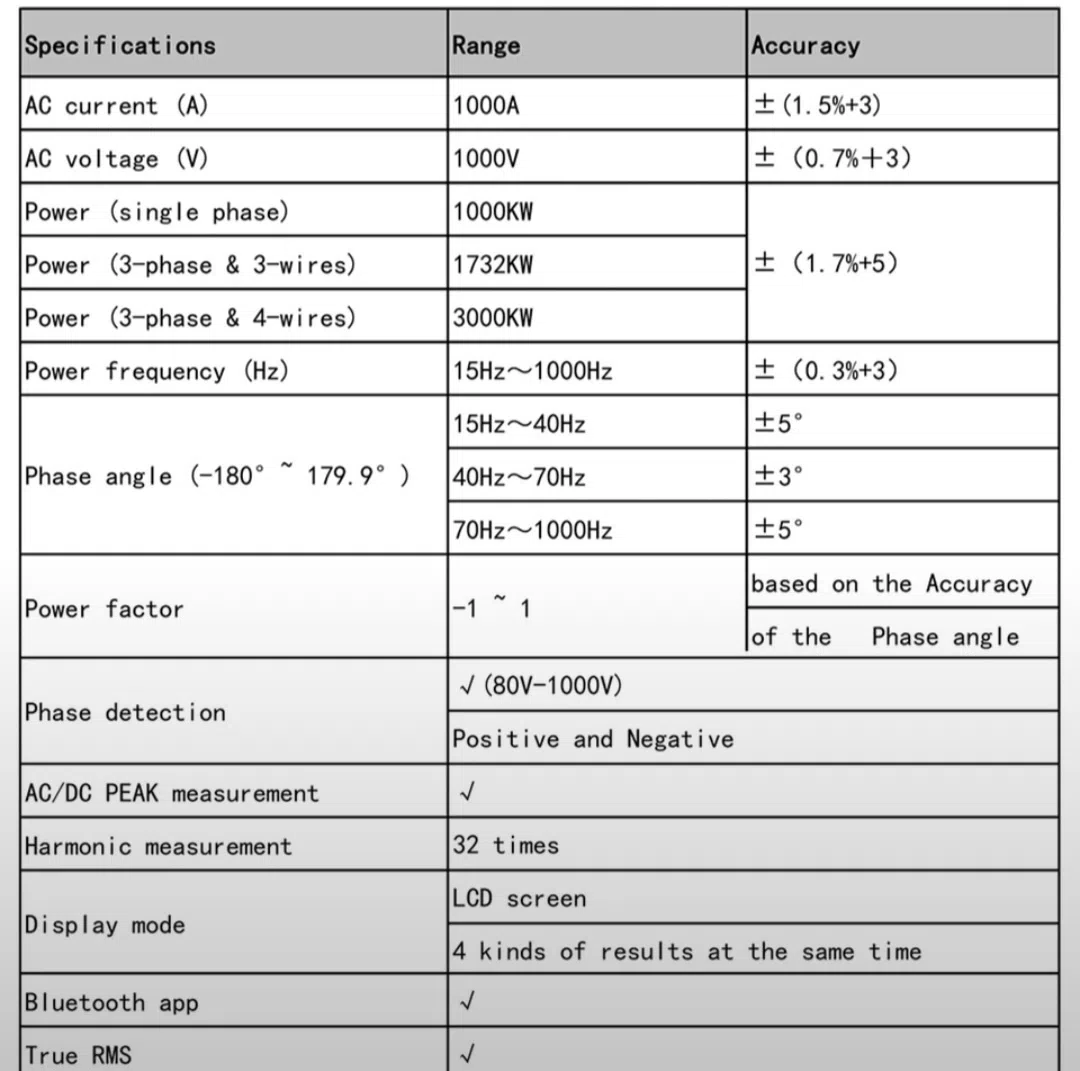

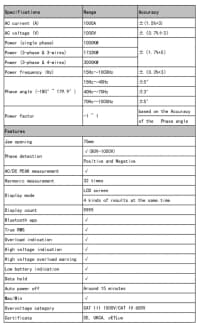

Clamp Meter Model: UNI-T UT 219P It is a professional digital clamp meter designed for comprehensive analysis of electrical parameters, including power and harmonics. The device combines the functions of an ammeter, voltmeter, and power quality analyzer. It can measure current without breaking the circuit and analyze single-phase and three-phase systems, including unbalanced loads. - This model is intended for professional use: electric power and distribution networks, solar (PV) stations, industrial equipment and motors, diagnostics and maintenance of electrical installations. Distinguishing features include harmonic measurement (up to the 32nd order), Bluetooth support for data transmission, a large clamp diameter (up to 75 mm), and the ability to display multiple parameters simultaneously. 📌 Features ● Alternating Current (AC): up to 1000 A, accuracy ±(1.5%+3) ● Alternating Voltage (AC): up to 1000 V, accuracy ±(0.7%+3) ● Power (1 phase): up to 1000 kW. ● Power (3 phase, 3 wire): up to 1732 kW. ● Power (3 phase, 4 wire): up to 3000 kW. ● Frequency: 15 Hz – 1000 Hz ● Power Factor: -1 to 1. ● Phase Angle: -180° ~ +179.9° ● Power Quality Analysis. ● Harmonics: up to the 32nd order. ● THD (Total Harmonic Distortion) — yes. ● Phase Sequence Measurement — yes. ● Clamp diameter: up to 75 mm. ● Display: LCD, 9999 counts. ● Simultaneous output: up to 4 parameters. ● True RMS. ● AC/DC Peak. ● Bluetooth (data analysis app) ● MAX/MIN, Data Hold. ● Auto Power Off (~15 min) ● Overload and low battery indicator. ● Safety and Protection: Category: CAT III 1000V / CAT IV 600V ● Protection Rating: IP54. bakutool.az
